| Power supply:DC9V replaceable battery |
| Conform to EN14604:2005/AC:2008 |
| Alarm volume: ≥85dB at 3m |
| Current:static current <8uA |
| Alarm current≤45mA |
| Temp. Range:-10°C~+60°C |
| Product life time> 10 years |
| Low battery warning |
| Silence time:Approx 10 mins |
| Protection area :6m high, 60m2 |
| Ceiling mounting, easy to install with mounting bracket |
| Size:Φ101.5*36.5mm |
| Operating voltage: AC Power 85-265V |
| Alarm level: 10% ±5% LEL |
| Sound Level:85dB/1m |
| Auto reset after alarm |
| Automatic detection of fault |
| MCU processing adopted |
| Induced gas-nature gas/LPG |
| Working with electromagnetic valve or manipulator |
| Malfunction auto-check indicator |
| Conforms to EN50194 standard |
| Warm-up time: 180s |
| Independent: Sound&Flash alarm |
| Dimension: 115*72*45mm |
| Glass push button panel, can't reset, with LED indicator |
| LED indicator:green for working, red for alarm |
| Operation voltage:24VDC |
| Max. Current: 1A at 24VDC |
| Contact resistance: 0.2ohm |
| Temp.range: -10 °C ~ +50°C |
| Max.relative humidity: 93RH 2% |
| Size:87x87x51mm |
| Color: red, yellow, green |
| The push button panel is plastic material can reset. |
| Operation voltage: 9-28VDC |
| Alarm. Current: <45mA |
| Contact resistance: 0.2ohm |
| Temp. range: -10°C~50°C |
| Max. relative humidity: 93RH 2% |
| Size:140*104*45mm |
| Color: red |
| Rated voltage:12V/24VDC |
| Rated current: 80mA 100mA |
| Flash intensity 1.2ws, flash period 1.5s |
| Audio alarm 105 db |
| Temperature range:-10°C ~ +55°C |
| Humidity range: 95% |
| The life-span of flash lamp's frequent; flashing: |
| 40000 times |
| The Xenon light is imported with high volume flash |
| Size: 134L X 115W X 48Hmm |
| Voltage: 24VDC (50mA)/ 12VDC (100mA) |
| Sound: 100db + /- 5dB (at 24VDC, 1 meter) |
| Strobe: 8,000mcd, six super bright led |
| Tone: harmonic bell sound or sweep tone or siren sound |
| Operating current (at 24VDC):22mA (bell only); |
| 50mA (with strobe) |
| Material: polycarbonate (UL94V-2) |
| Color: red |
| Size:82L x 82W x 52Hmm |
| Working voltage: 100V-240V AC |
| Response time: < 30 seconds |
| Alarm volumn: > 85 dB (between 1m) |
| Emission frequency: 315 MHZ / 433 MHZ |
| Emission distance: open distance 100m |
| Sensitive parts life: 7years |
| Working temperature: - 10 °C ~ 45 °C |
| Working humidity: 10% ~ 95% RH |
| Alarm range:Natural gas:10% ~ 25% LEL, |
| Coal gas: 2% ~ 5% LEL |

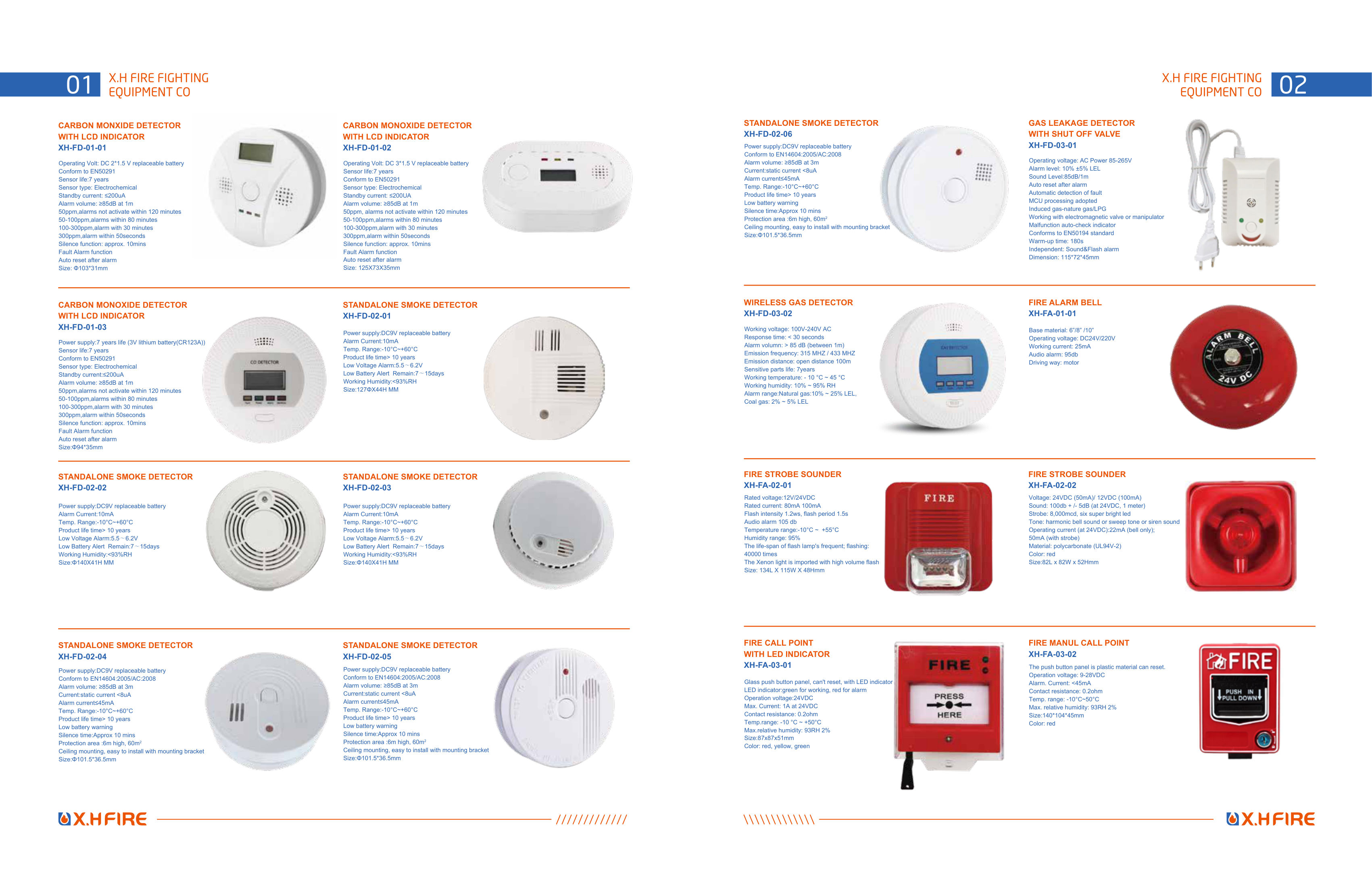

| STANDALONE SMOKE DETECTOR |
| XH-FD-02-06 |
| GAS LEAKAGE DETECTOR |
| WITH SHUT OFF VALVE |
| XH-FD-03-01 |
| FIRE CALL POINT |
| WITH LED INDICATOR |
| XH-FA-03-01 |
| FIRE MANUL CALL POINT |
| XH-FA-03-02 |
| FIRE STROBE SOUNDER |
| XH-FA-02-01 |
| FIRE STROBE SOUNDER |
| XH-FA-02-02 |
| WIRELESS GAS DETECTOR |
| XH-FD-03-02 |
| FIRE ALARM BELL |
| XH-FA-01-01 |
| Base material: 6”/8” /10” |
| Operating voltage: DC24V/220V |
| Working current: 25mA |
| Audio alarm: 95db |
| Driving way: motor |
| Operating Volt: DC 2*1.5 V replaceable battery |
| Conform to EN50291 |
| Sensor life:7 years |
| Sensor type: Electrochemical |
| Standby current: ≤200uA |
| Alarm volume: ≥85dB at 1m |
| 50ppm,alarms not activate within 120 minutes |
| 50-100ppm,alarms within 80 minutes |
| 100-300ppm,alarm with 30 minutes |
| 300ppm,alarm within 50seconds |
| Silence function: approx. 10mins |
| Fault Alarm function |
| Auto reset after alarm |
| Size: Φ103*31mm |
| Operating Volt: DC 3*1.5 V replaceable battery |
| Sensor life:7 years |
| Conform to EN50291 |
| Sensor type: Electrochemical |
| Standby current: ≤200UA |
| Alarm volume: ≥85dB at 1m |
| 50ppm, alarms not activate within 120 minutes |
| 50-100ppm,alarms within 80 minutes |
| 100-300ppm,alarm with 30 minutes |
| 300ppm,alarm within 50seconds |
| Silence function: approx. 10mins |
| Fault Alarm function |
| Auto reset after alarm |
| Size: 125X73X35mm |
| Power supply:DC9V replaceable battery |
| Conform to EN14604:2005/AC:2008 |
| Alarm volume: ≥85dB at 3m |
| Current:static current <8uA |
| Alarm current≤45mA |
| Temp. Range:-10°C~+60°C |
| Product life time> 10 years |
| Low battery warning |
| Silence time:Approx 10 mins |
| Protection area :6m high, 60m2 |
| Ceiling mounting, easy to install with mounting bracket |
| Size:Φ101.5*36.5mm |
| Power supply:DC9V replaceable battery |
| Conform to EN14604:2005/AC:2008 |
| Alarm volume: ≥85dB at 3m |
| Current:static current <8uA |
| Alarm current≤45mA |
| Temp. Range:-10°C~+60°C |
| Product life time> 10 years |
| Low battery warning |
| Silence time:Approx 10 mins |
| Protection area :6m high, 60m2 |
| Ceiling mounting, easy to install with mounting bracket |
| Size:Φ101.5*36.5mm |
| Power supply:DC9V replaceable battery |
| Alarm Current:10mA |
| Temp. Range:-10°C~+60°C |
| Product life time> 10 years |
| Low Voltage Alarm:5.5～6.2V |
| Low Battery Alert Remain:7～15days |
| Working Humidity:<93%RH |
| Size:Φ140X41H MM |
| Power supply:DC9V replaceable battery |
| Alarm Current:10mA |
| Temp. Range:-10°C~+60°C |
| Product life time> 10 years |
| Low Voltage Alarm:5.5～6.2V |
| Low Battery Alert Remain:7～15days |
| Working Humidity:<93%RH |
| Size:Φ140X41H MM |
| Power supply:7 years life (3V lithium battery(CR123A)) |
| Sensor life:7 years |
| Conform to EN50291 |
| Sensor type: Electrochemical |
| Standby current:≤200uA |
| Alarm volume: ≥85dB at 1m |
| 50ppm,alarms not activate within 120 minutes |
| 50-100ppm,alarms within 80 minutes |
| 100-300ppm,alarm with 30 minutes |
| 300ppm,alarm within 50seconds |
| Silence function: approx. 10mins |
| Fault Alarm function |
| Auto reset after alarm |
| Size:Φ94*35mm |
| CARBON MONXIDE DETECTOR |
| WITH LCD INDICATOR |
| XH-FD-01-01 |
| CARBON MONOXIDE DETECTOR |
| WITH LCD INDICATOR |
| XH-FD-01-02 |
| STANDALONE SMOKE DETECTOR |
| XH-FD-02-04 |
| STANDALONE SMOKE DETECTOR |
| XH-FD-02-05 |
| STANDALONE SMOKE DETECTOR |
| XH-FD-02-02 |
| STANDALONE SMOKE DETECTOR |
| XH-FD-02-03 |
| CARBON MONOXIDE DETECTOR |
| WITH LCD INDICATOR |
| XH-FD-01-03 |
| STANDALONE SMOKE DETECTOR |
| XH-FD-02-01 |
| Power supply:DC9V replaceable battery |
| Alarm Current:10mA |
| Temp. Range:-10°C~+60°C |
| Product life time> 10 years |
| Low Voltage Alarm:5.5～6.2V |
| Low Battery Alert Remain:7～15days |
| Working Humidity:<93%RH |
| Size:127ΦX44H MM |
